AyA models after DIARM, mid 90-ties

Sidelock models.

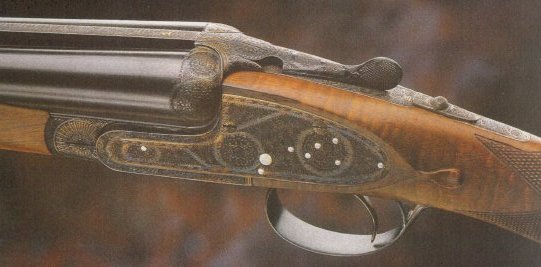

No 56 / SLE
Sidelock by Holland&Holland. Double intercepting sears. Triple bolting system, gas scape valves, loading lateral indicators. Big basqule designed for competition purposes. Double triggers, front yielding trigger - single selective or non selective trigger by request.

Chopper lump barrels of chrome-nickel steel with selective automatic ejectors. High matted top rib, ventilated matted on request. Barrel length on request.

12, 16 or 20 bores with 2 3/4” chamber.

Stock and forearm nicely checkered of selected and seasoned walnut.

m/56

A very nice Pigeon Gun, the best of AyA.



No 1 / SLE
Sidelock by Holland&Holland. Double intercepting sears with automatic safety. Double bolting system, gas scape valves, loading lateral indicators. Double triggers, front yielding trigger - single selective or non selective trigger by request.

Chopper lump barrels jointed by special low temperature alloy brassing procedure of chrome-nickel steel with automatic ejectors. Concave top rib.

Very fine English scroll engraving.

12, 16, 20, 28 & 410 bores with 2 3/4” chambers. Barrels 30”,, 28”, 26”.

English straight stock, Pistol or half pistol on request. Stock and forearm nicely checkered of selected and seasoned walnut.

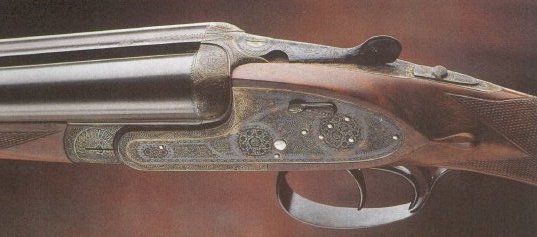

No 1

The best Game Gun available from AyA, today when Senior is dropped this is the top line model.



No 53 / SLE
Sidelock by Holland&Holland, hand detachable. Double intercepting sears with automatic safety. Triple bolting system, gas scape valves, loading lateral indicators. Double triggers, front yielding trigger - single selective or non selective trigger by request.

Chopper lump barrels with automatic ejectors. Concave top rib, concave or ventilated rib on request.

Very fine English scroll engraving.

12, 16 & 20 bores with 2 3/4” chambers, 3” on request. Barrels 30”, 28”, 26”.

Stock and forearm nicely checkered of selected and seasoned walnut.

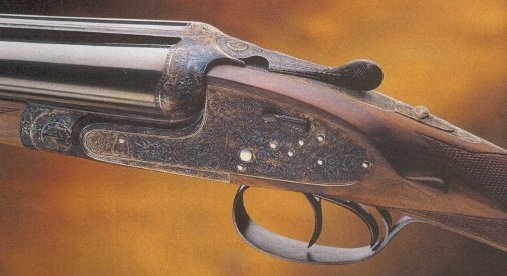

m/53

A Pigeon Gun, a little bit down from m/56

No 2 / SLE
Sidelock by Holland&Holland. Double intercepting sears with automatic safety. Double bolting system, gas scape valves, loading lateral indicators. Double triggers, front yielding trigger - single selective or non selective trigger by request.

Chopper lump barrels jointed by special low temperature alloy brassing procedure with automatic ejectors. Concave top rib.

Very fine English scroll engraving.

12, 16, 20, 28 & 410 bores with 2 3/4” chambers. Barrels 30”, 28”, 26”.

English straight stock, Pistol or half pistol on request. Stock and forearm nicely checkered of selected and seasoned walnut.

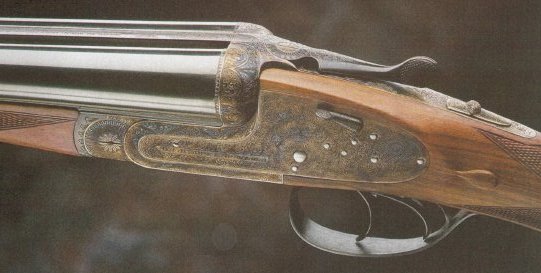

No 2

The third best Game Gun available from AyA, today when Senior is dropped this is the second game model.

Model XXV/SL / SLE
Sidelock by Holland&Holland. Double intercepting sears with automatic safety. Double bolting system, gas scape valves, loading lateral indicators. Double triggers..

Chopper lump barrels with automatic ejectors. Raised top rib - Churchill style.

Very fine English scroll engraving.

12, 16, 20, 28 & 410 bores with 2 3/4” chambers. Barrels 25” - Churchill style.

English straight stock. Pistol or half pistol on request. Stock and forearm nicely checkered of selected and seasoned walnut.

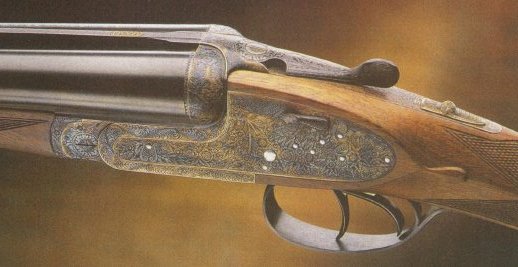

m/ XXV SL

This is a copy of Robert Churchill’s XXV.

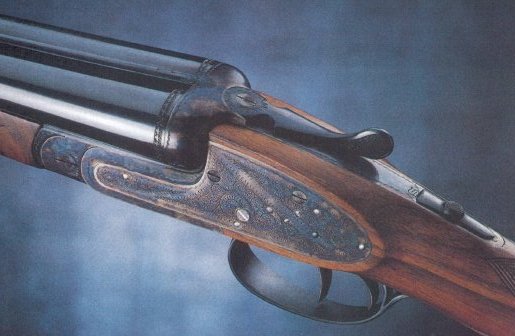

Model Countryman / SLE
Sidelock by Holland&Holland. Double intercepting sears with automatic safety. Double bolting system, loading lateral indicators. Double triggers - single selective or non selective trigger by request.

Chopper lump pattern barrels with automatic ejectors. Concave top rib.

Fine English scroll engraving.

12 & 20 bores with 2 3/4” chambers. Barrels 30”, 28”, 26”.

English straight stock, Pistol or half pistol on request. Stock and forearm nicely checkered of selected and seasoned walnut.



Boxlock models.

Model 4 De Luxe / BLE
Anson-Deeley boxlock with free floating firing pins. Double bolting system. Double triggers - single selective or non selective trigger by request.

Chopper lump barrels with automatic ejectors. Flat top rib.

Fine arabesque engraving.

12, 16, 20, 28 & 410 bores with 2 3/4” chambers. Barrels 30”, 28”, 26”.

English straight stock, Pistol or half pistol on request. Stock and forearm nicely checkered of selected and seasoned walnut.

Approx. weight 2.85 kg as 12ga.

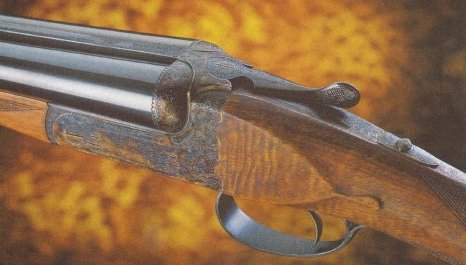

m/4 -A De Luxe

The top of the line boxlock from AyA.

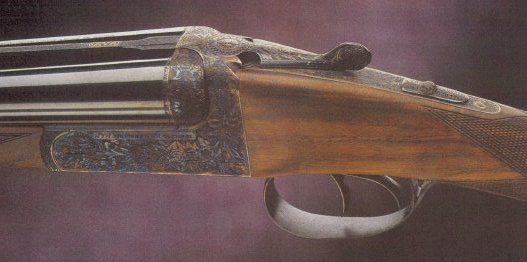

XXV/BL / BLE
Anson-Deeley boxlock. Double triggers.

Chopper lump barrels with automatic ejectors. Raised top rib - Churchill style.

Fine arabesque engraving.

12 & 20 bores with 2 3/4” chambers. Barrels 25” - Churchill style.

English straight stock, Pistol or half pistol on request. Stock and forearm nicely checkered of selected and seasoned walnut.

Approx. weight 2.85 kg as 12ga.

m/XXV BL

This is a No4 as Churchill’s XXV but as a boxlock.

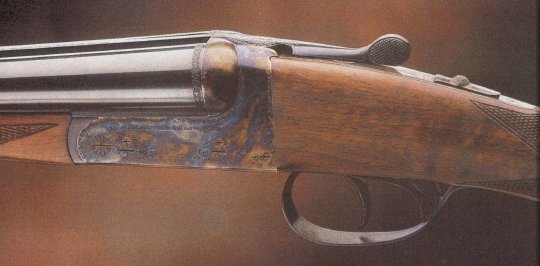

Model 4 / BLE
Anson-Deeley boxlock with free floating firing pins. Double bolting system. Double triggers - single selective or non selective trigger by request.

Chopper lump barrels with automatic ejectors. Flat top rib.

Fine arabesque engraving.

12, 16, 20, 28 & 410 bores with 2 3/4” chambers. Barrels 30”, 28”, 26”.

English straight stock, Pistol or half pistol on request. Stock and forearm nicely checkered of selected and seasoned walnut.

Approx. weight 2.85 kg as 12ga.

m/4

Very close to earlier No 3.

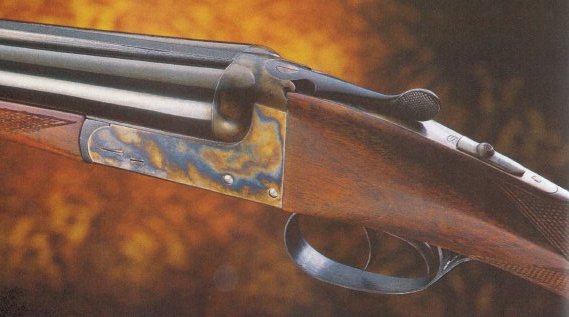

Model Yeoman/Expulsor / BLE
Anson-Deeley boxlock with free floating firing pins. Double bolting system. Double triggers.

Chopper lump pattern barrels with automatic ejectors. Flat raised rib.

12 bore with 2 3/4” chamber. Barrels 30”, 28”, 26”.

Full Pistol stock with beavertail forend. Stock and forearm nicely checkered of selected and seasoned spanish walnut.

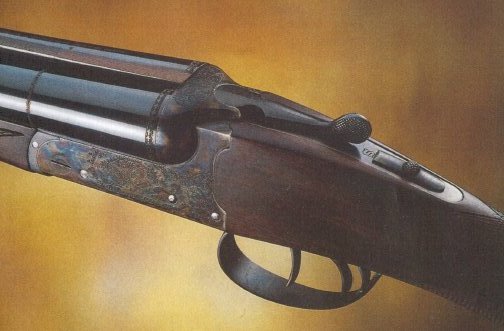

Model Iberia / BLNE
Anson-Deeley boxlock with free floating firing pins. Double bolting system. Double triggers.

Mono block pattern barrels with extractor. Flat raised rib.

12 bore with 2 3/4” chamber. Barrels 30”, 28”, 26”.

Full Pistol stock with beavertail forend. Stock and forearm nicely checkered of selected and seasoned spanish walnut.



Model Iberia / BLE
Anson-Deeley boxlock with free floating firing pins. Double bolting system. Double triggers.

Mono block pattern barrels with ejector. Flat raised rib.

12 bore with 2 3/4” chamber. Barrels 30”, 28”, 26”.

Full Pistol stock with beavertail forend. Stock and forearm nicely checkered of selected and seasoned spanish walnut.

Over&under sidelock models.

Model 37 -SUPER / SLE
Top grade over and under. Quadruple bolting with double underlocking lugs and Kersten crossbolts. Chopper lump forging barrels of chrome nickel steel. Ventilated top rib jointed as the barrels by special low temperature alloy brassing procedure.

Automatic ejectors. Double intercepting sears with additional automatic safety device. Loading lateral indicators. Gold plated lock parts. Nail detachable locks.

Front yielding trigger - Single selective or non selective trigger by request.

Grade A engraving is standard, Grade B or C on request.
Grade A Ducks and Pheasants
Grade B Scroll
Grade C Deep cut relief engraving

12 bore with 2 3/4” chambers.

Stock type and measurements by request. Stock and forearm nicely checkered of selected and seasoned walnut.

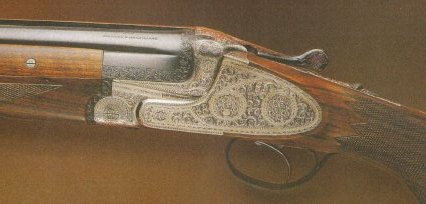

Model 37

This is a gun very close to Merkels sidelock over-and-under, when introduced this was the most expensive shotgun in Spain.

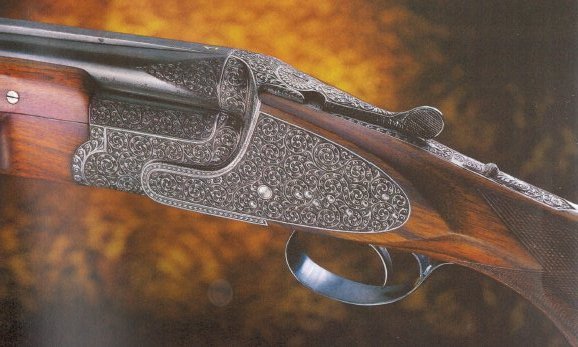

Model AUGUSTA / SLE
Deluxe over & under sidelock. Double underlocking lugs. Double triggers, single selective or non selective trigger by request.

Chopper lump forging barrels of chrome nickel steel. Ventilated top rib matted by hand checkering. Selective automatic ejectors.

Grade C engraving.

12 bore with 2 3/4” chambers. Barrels 30”, 29”, 28”, 27”, 26”, 25”.

Stock type and measurements by request. Stock and forearm nicely checkered of selected and seasoned walnut.

Approx. weight 3.40 kg as 12ga. 28”
